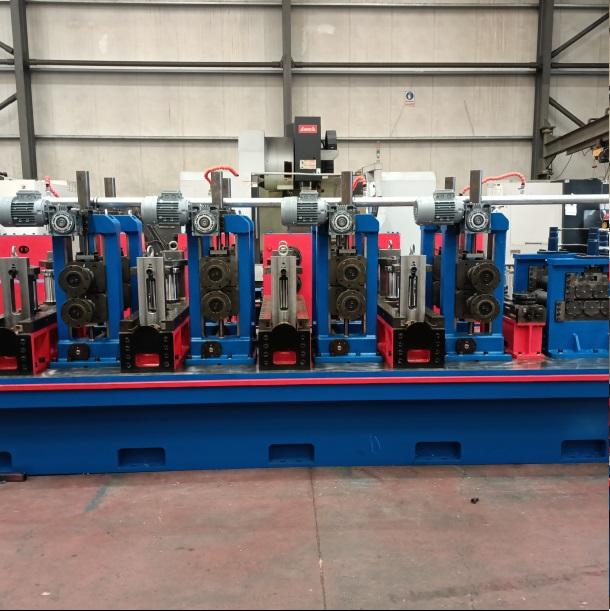

ERW tube mill
-
Model
Thickness
mm
Round Tube Diameter
Square Tube Diameter
mm
Rectangular Tube Diameter
mm
Line Speed
mm
Inch
ZEM 80
0.40 - 1.50
Ø 10 - 25
1/8"-3/4"
10x10 - 20x20
20x10 - 30x10
180 m/min
0.60 - 2.60
Ø 10 - 25
1/8"-3/4"
10x10 - 20x20
20x10 - 30x10
170 m/min
ZEM 120
0.50 - 1.80
Ø 13 - 38
1/4"-1 ¼"
10x10 - 30x30
20x10 - 40x20
160 m/min
0.70 - 2.60
Ø 13 - 38
1/4"-1 ¼"
10x10 - 30x30
20x10 - 40x20
150 m/min
0.80 - 3.20
Ø 13 - 38
1/4"-1 ¼"
10x10 - 30x30
20x10 - 40x20
150 m/min
ZEM 160
0.70 - 2.00
Ø 16 -51
3/8"-1 ½"
15x15 - 40x40
20x10 - 50x30
150 m/min
0.80 - 2.60
Ø 19 - 51
3/8"-1 ½"
15x15 - 40x40
20x10 - 50x30
145 m/min
0.90 - 3.20
Ø 21 - 51
1/2"-1 ½"
16x16 - 40x40
20x15 - 50x30
140 m/min
1.00 - 4.00
Ø 21 - 51
1/2"-1 ½"
16x16 - 40x40
20x15 - 50x30
130 m/min
ZEM 200
0.70 - 2.00
Ø 16 - 60
3/8"-2"
15x15 - 50x50
20x10 - 60x40
140 m/min
0.80 - 2.60
Ø 19 - 60
3/8"-2"
15x15 - 50x50
20x10 - 60x40
135 m/min
0.90 - 3.20
Ø 21 - 60
1/2"-2"
20x20 - 50x50
20x15 - 60x40
130 m/min
1.00 - 4.00
Ø 21 - 60
1/2"-2"
20x20 - 50x50
20x15 - 60x40
120 m/min
ZEM 240
0.80 - 2.50
Ø 21 - 76
1/2"-2 ½"
20x20 - 60x60
25x15 - 80x40
140 m/min
0.90 - 3.50
Ø 21 - 76
1/2"-2 ½"
20x20 - 60x60
25x15 - 80x40
130 m/min
1.00 - 4.50
Ø 26 - 76
3/4"-2 ½"
20x20 - 60x60
25x15 - 80x40
120 m/min
ZEM 280
0.80 - 3.20
Ø 21 - 89
1/2"-3"
20x20 - 70x70
30x20 - 100x40
125 m/min
1.00 - 4.50
Ø 26 - 89
3/4"-3"
20x20 - 70x70
30x20 - 100x40
120 m/min
1.50 - 6.00
Ø 32 - 89
1"-3"
25x25 - 70x70
30x20 - 100x40
110 m/min
ZEM 360
0.90 - 3.50
Ø 34 - 114
1''- 4''
25x25 - 90x90
30x20 - 120x60
110 m/min
1.00 – 4.50
Ø 34 - 114
1''- 4''
25x25 - 90x90
30x20 - 120x60
105 m/min
1.50 – 6.40
Ø 34 - 114
1''- 4''
25x25 - 90x90
30x20 - 120x60
100 m/min
ZEM 400
1.00 - 4.50
Ø 49 - 127
1½"-4 ½"
40x40 - 100x100
50x30 - 150x50
100 m/min
1.20 - 5.50
Ø 49 - 127
1½"-4 ½"
40x40 - 100x100
50x30 - 150x50
95 m/min
1.50 - 6.40
Ø 49 - 127
1½"-4 ½"
40x40 - 100x100
50x30 - 150x50
90 m/min
ZEM 450
1.00 - 4.50
Ø 60 - 141
2" - 5"
50x50 - 110x110
60x40 - 120x100
90 m/min
1.20 - 5.50
Ø 60 - 141
2" - 5"
50x50 - 110x110
60x40 - 120x100
85 m/min
1.50 - 6.40
Ø 60 - 141
2" - 5"
50x50 - 110x110
60x40 - 120x100
80 m/min
ZEM 550
0.70 - 2.00
Ø 60 - 168
2" - 6"
50x50 - 130x130
60x40 - 140x120
80 m/min
1.20 - 5.00
Ø 60 - 168
2" - 6"
60x60 - 130x130
60x40 - 140x120
70 m/min
1.50 - 6.40
Ø 76 - 168
2 ½" - 6"
60x60 - 130x130
80x40 - 140x120
60 m/min
2.00 - 8.20
Ø 76 - 168
2 ½" - 6"
60x60 - 130x130
80x40 - 140x120
60 m/min
ZEM 680
1.50 - 6.40
Ø 76 - 219
2 ½" - 8"
60x60 - 150x150
80x40 - 200x100
50 m/min
2.00 - 8.20
Ø 89 - 219
3" - 8"
75x75 - 150x150
100x50 - 200x100
40 m/min
2.50 - 10.00
Ø 89 -219
3" - 8"
75x75 - 150x150
100x50 - 200x100
35 m/min
4.00 - 12,70
Ø 89 -219
3" - 8"
75x75 - 150x150
100x50 - 200x100
30 m/min
ZEM 860
2.00 - 6.40
Ø 101-273
3 ½"-10"
80x80 - 200x200
100x60 - 250x150
40 m/min
2.50 - 8.20
Ø 114-273
4"-10"
90x90 - 200x200
120x60 - 250x150
35 m/min
3.00 -10.00
Ø 114-273
4"-10"
90x90 - 200x200
120x60 - 250x150
30 m/min
4.00 - 12.70
Ø 114-273
4"-10"
90x90 - 200x200
120x60 - 250x150
25 m/min
ZEM 1000
3.00 - 10.00
Ø 127-323
4 ½"-12"
100x100 - 250x250
120x80 - 300x200
20 m/min
4.00 - 12.70
Ø 127-323
4 ½"-12"
100x100 - 250x250
120x80 - 300x200
15 m/min
