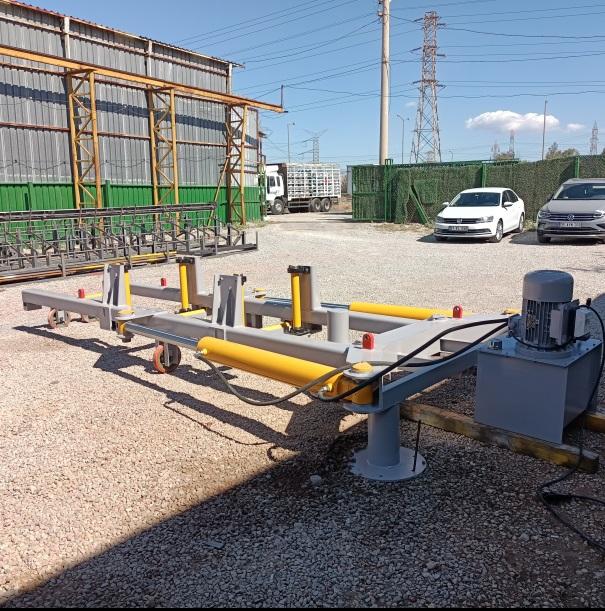

Rebar bundle bending machine

REBAR BUNDLE BENDING MACHINE
This specification has been made for the supply contract of rebar bending.

which is designed to OD 8-22 /32  mm rebar bending.

Rebar length: 12,000 mm
Bundle weight: Max 2000 kg
Rebar yield strength: Max 650 mpa
Rebar tensile strength: Max 700 mpa
Elongation: > 13%
Rm/Re: Up to 1.20

2.Rebar Size and Weight Capacity
Rebar outside diameter: 8-22 mm. (2000 kg)

Rebar outside diameter: 8-32 mm. (750 kg)
Rebar weight : Max. 2000 kg.

Rebar length : 12000 mm.

3.Bending Speed Time and Capacity

Bending time : 1 min.

The bending time is the same for all diameters and weights.

4.Machine Equipment and Capacity

 Hydraulic tank: 120 liter

Hydraulic pomp : 44 lt/min.

Pomp motor : 11 kw- 50-60 hz

System pressure : 150-180 bar

Mechanical valve lever

Heavy duty hydraulic cylinders (2) / Ø160 X Ø80X1100 mm

Wheel: Steel casting and coating/ Ø 250x70x25 mm

 Frame assembly

Wheel (4)

Control unit

5. Machine Dimensions

 Width: 2400 mm

Length: 5800 mm

Height: 600 mm

Weight: 2800 kg

6. Working Floor and Area Requirement

If the working floor is a concrete floor, it must be perfect (customer will do)

Area requirement : 12000 x 7000 mm
